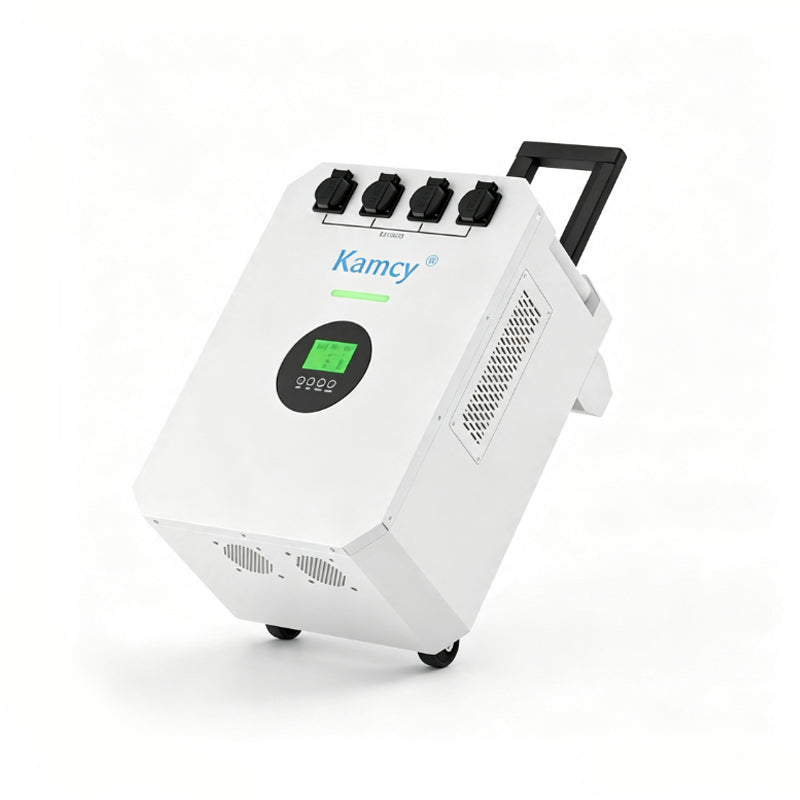

1. 5kWh Large Capacity LiFePO4 Battery & Long Lifespan This portable energy storage system is equipped with premium 51.2V 100Ah lithium iron phosphate battery, delivering up to 5kWh stable power output. Featuring over 6000+ deep cycle times, excellent temperature resistance and ultra-low self-discharge rate, the LFP battery ensures safer power supply and longer service life than ordinary lithium batteries, perfectly meeting long-term home backup and off-grid power needs.

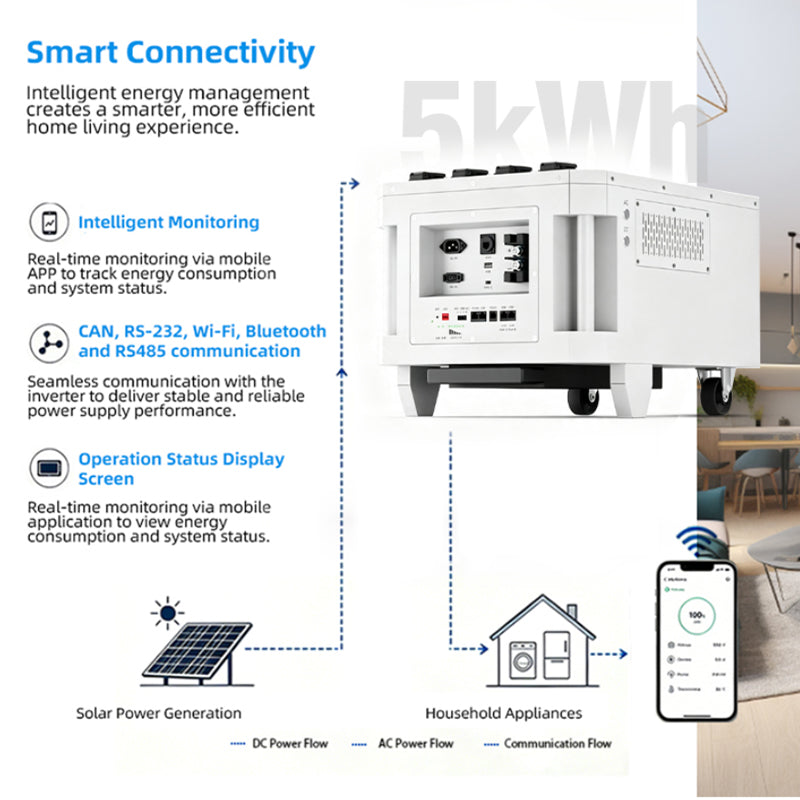

2. All-in-One Integrated Energy Storage System Integrates high-efficiency pure sine wave inverter, smart BMS, charging and discharging management system in one unit. No complicated installation or extra equipment required. Supports continuous stable power supply for household appliances, power tools and outdoor devices, providing clean and reliable emergency power for your home, RV, campsite and remote off-grid areas.
3. Trolley Wheeled Portable & Humanized Design Built-in retractable pull rod and silent universal wheels make the heavy-duty power station easy to move and carry freely. Compact and integrated structure saves storage space, while the clear LED display real-timely shows battery level, charging/discharging status and working data, allowing you to monitor the power condition at a glance.
4. Dual Solar & AC Charging + Smart BMS Protection Supports AC grid charging and solar panel charging, making full use of solar energy to reduce household electricity bills and realize green power self-sufficiency. Built-in intelligent BMS battery management system provides comprehensive protection against overcharge, overdischarge, overcurrent, short circuit and high temperature, greatly improving battery safety and stability during long-term operation.
5. Wide Application & Customization Support This 5kWh home energy storage power station is ideal for home power outage backup, solar off-grid system, outdoor camping, construction site temporary power, emergency disaster prevention and daily household use. We support OEM/ODM customization including logo, appearance, function parameters and packaging to meet different market and customer demands.
| Parameter | 5kWh (51.2V 100Ah) | 10kWh (51.2V 200Ah) |
|---|---|---|
| Rated Voltage | 51.2V | 51.2V |
| Rated Capacity | 100Ah | 200Ah |
| Rated Energy | 5kWh | 10kWh |
| Output Voltage Range | 43.2V ~ 57.6V | 43.2V ~ 57.6V |
| Max Charging Voltage | 57.6V | 57.6V |
| Discharge Cut-off Voltage | 43.2V | 43.2V |
| IP Rating | IP52 | IP52 |
| Recommended Charging Current | 50A | 50A |
| Max Continuous Discharging Current | 100A | 100A |
| Round Trip Efficiency | ≥98% | ≥98% |
| Dimensions (LWH) | 420*550*280mm (Customizable) | 420*550*280mm (Customizable) |
| Weight | ≈76 Kg | ≈142 Kg |
| Humidity Range | 5% ~ 95% Relative Humidity (Non-condensing) | 5% ~ 95% Relative Humidity (Non-condensing) |
| Charging Temperature | -20℃ ~ 55℃ | -20℃ ~ 55℃ |
| Discharging Temperature | -20℃ ~ 55℃ | -20℃ ~ 55℃ |
| Storage Temperature | -10℃ ~ 50℃ | -10℃ ~ 50℃ |
| Cycle Life | ≥6000 Cycles (0.2C, @25℃, 80% DoD) | ≥6000 Cycles (0.2C, @25℃, 80% DoD) |
| Design Life | ≥10 Years | ≥10 Years |
| Mounting Options | Floor Standing / Trolley Portable | Floor Standing / Trolley Portable |
